90°USU 110

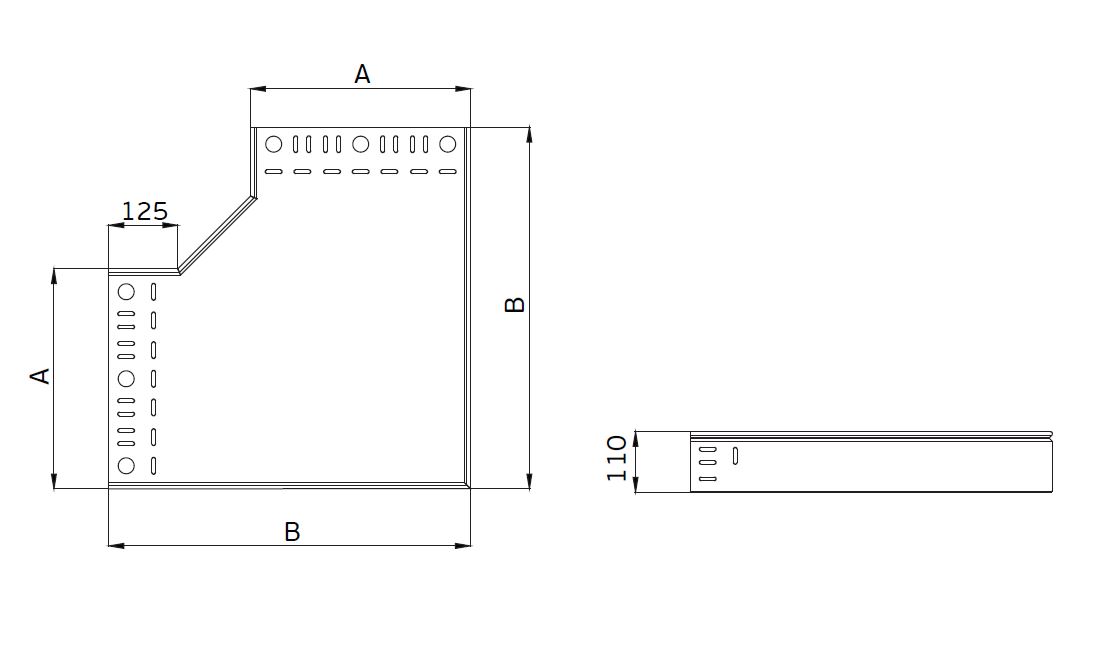

90° USU-110 Sc

04usu110

Label A B Height Thickness Mass Stock Number
[mm] [mm] [mm] [mm] [kg]
USU-100/110 100 357 110 0,70 1,82 130113
USU-200/110 200 457 110 0,70 2,32 130114
USU-300/110 300 557 110 0,90 3,56 130115
USU-400/110 400 657 110 0,90 4,08 130116
USU-500/110 500 757 110 1,25 7,14 130117
USU-600/110 600 857 110 1,25 8,13 130118



90° USU-110 Tc

04usu110

Label A B Height Thickness Mass Stock Number
[mm] [mm] [mm] [mm] [kg]
USU-100/110 100 357 110 0,80 2,08 119430
USU-200/110 200 457 110 0,80 2,65 119431
USU-300/110 300 557 110 1,00 3,96 119432
USU-400/110 400 657 110 1,00 4,53 119433
USU-500/110 500 757 110 1,25 7,14 130119
USU-600/110 600 857 110 1,25 8,13 115215
