TSU 110

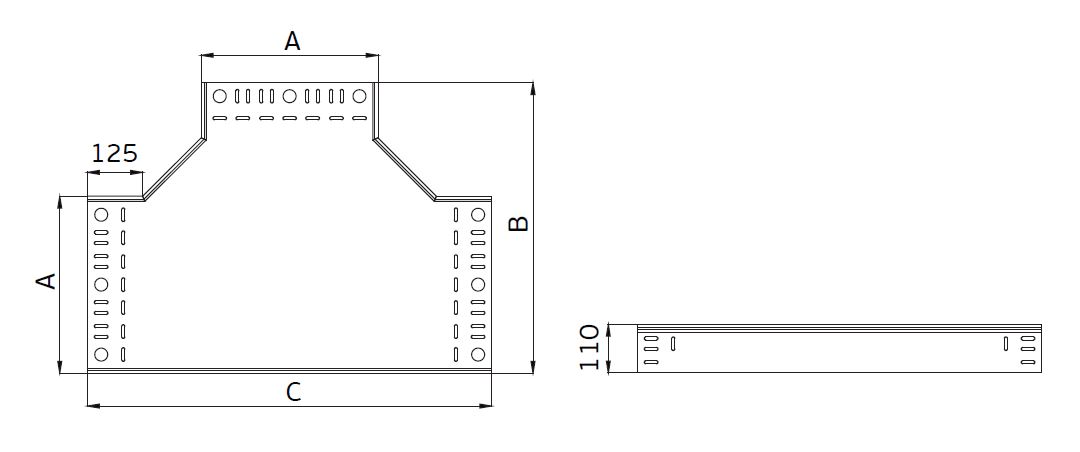

90° TSU-110 Sc

06ksu110nac

Label A B L Height Thickness Mass Stock Number
[mm] [mm] [mm] [mm] [mm] [kg]
TSU-100/110 100 357 614 110 0,70 2,16 130121
TSU-200/110 200 457 714 110 0,70 2,76 130122
TSU-300/110 300 557 814 110 0,90 4,23 130123
TSU-400/110 400 657 914 110 0,90 4,86 130124
TSU-500/110 500 757 1014 110 1,25 8,47 130125
TSU-600/110 600 857 1114 110 1,25 9,65 130126

90° TSU-110 Tc

06ksu110nac

Label A B L Height Thickness Mass Stock Number
[mm] [mm] [mm] [mm] [mm] [kg]
TSU-100/110 100 357 614 110 0,80 2,47 119434
TSU-200/110 200 457 714 110 0,80 3,15 119435
TSU-300/110 300 557 814 110 1,00 4,70 119436
TSU-400/110 400 657 914 110 1,00 5,40 119437
TSU-500/110 500 757 1014 110 1,25 7,14 130120
TSU-600/110 600 857 1114 110 1,25 8,13 119844
